WiFi Smoke/GAS Detector

POSITION: Home > Products> Tuya Smart Home> WiFi Smoke/GAS Detector

WSD02

Description:

  • * GAS Detector.

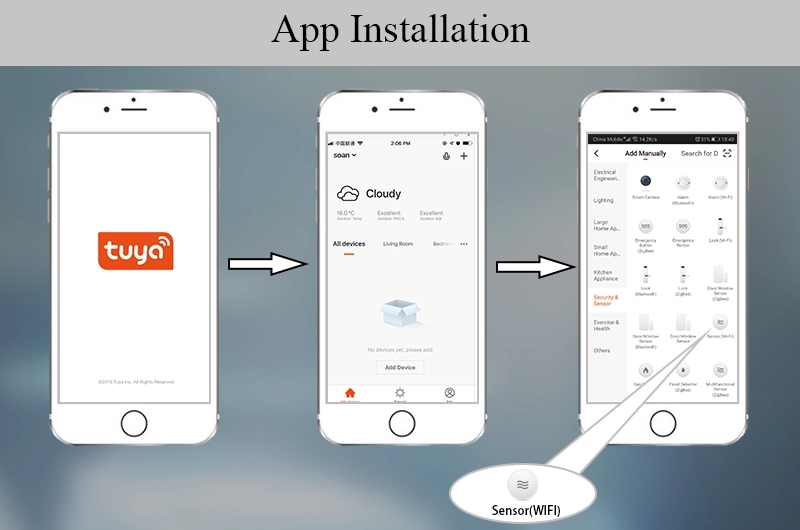

  • * TuyaSmart APP.
  • * AC 110-240V.
  • * Warm-up Time:180S
  • * Alarm Level:7%LEL
  • * Sound Level:≥85dB/m
  • * Operating Temperature:-10℃-+50℃
  • * Installation Mode:Wall mounted
  • * Power:Power LED constant green
  • * Alarm : Alarm LED flashing red rapidly
  • * Sensor Failure:Fault LED constant Yellow
  • * Alarm Reset:Automatic reset when leaked gas clears

Features:


Detect Multiple Gases:Home&Industrial gas detector suitable for detect LPG(Propane and Methane), natural gas, coal gas, gas fuel, artificial gas, liquefied petroleum gas, liquefied natural gas etc.

LED Colors Display & Sound Warning:This Gas Detector offers Voice Notification and a digital readout of the gas concentration.When gas leak concentration reaches presetting level, the alarm provides a visual and audible signal. 85dB alarm sound, reduce the risk of gas explosion and protect your family's life and property safety.

High Stability Gas Detector: Our gas leak detectors have high stability,it is used for detecting leaking gas. Advanced semiconductor sensor is adopted to ensure high stability and long life.

Optional Installation Location:The Gas Leak Detectors installation has two situations. To detect gas heavier than air,please install within a ridial distance of 1.5meters from the gas source at a height of 0.3-1 meter above ground.To detect gas lighter than air,please install within a ridial distance of 1.5 meters from the gas source,0.3-1 meter under the ceiling.

Life Time Warranty:Any quality problem about thr gas detector please contact us,we will help you solve it as soon as possible.


Specification:


Model

WSD02

LCD Resolution

IPS:320x240

LCD Size

< 2 inch

Input voltage

DC5V(micro USB standard connector)

Operating current

<150ma< span="">

Alarming time

<30 second

Element age

3 years

Air Pressure

86 106Kpa

Operation Temperature

0~55

Relative humidity

<80%(no condense)

App

TuyaSmart / Smart Life

Alarm output

Sound & Flash alarm

Sound level

85dB/3m

Sensitivity

1.8%ft±0.8%ft

Panel Material

PC

Installation

Ceiling mounted

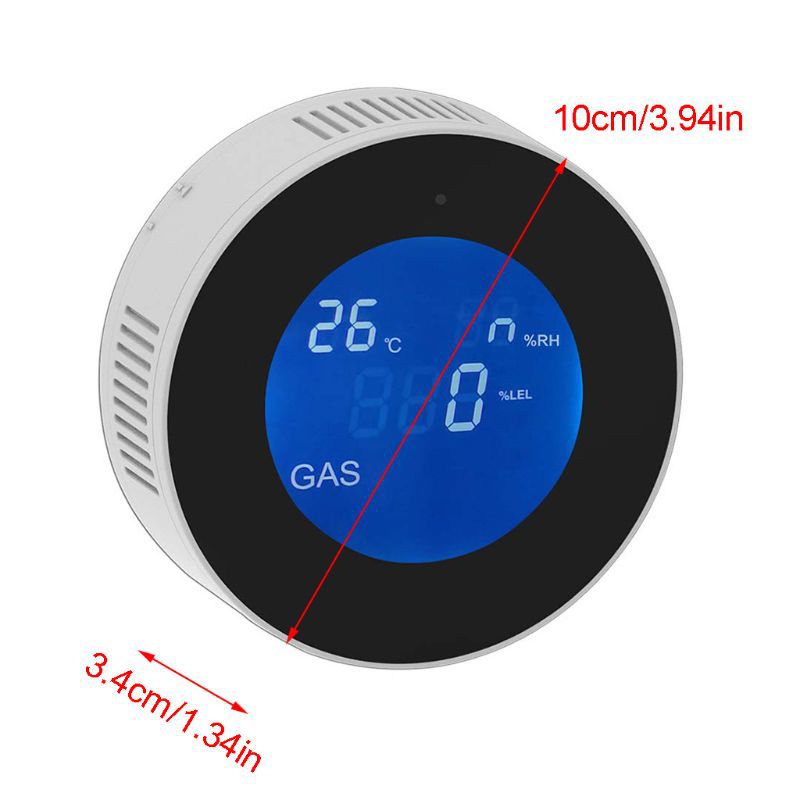

Dimension

Φ110*46mm

1pcs Package

0.45kgs/12X12X125px

100pcs Package

46*27*21CM
