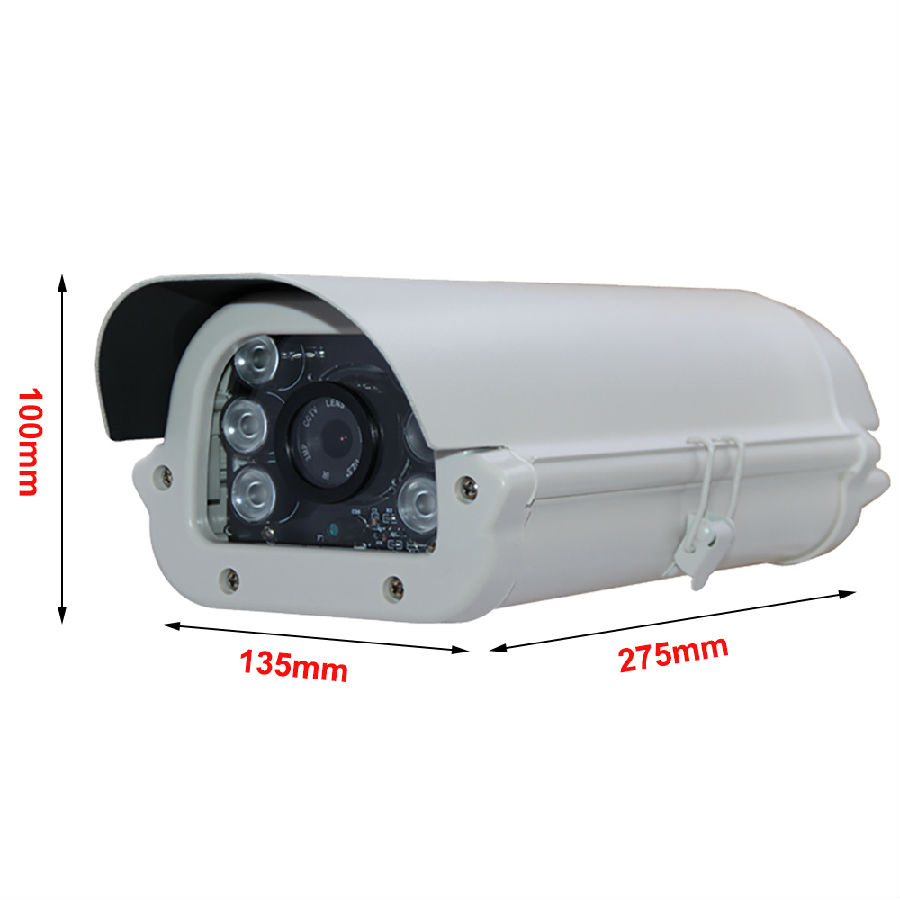

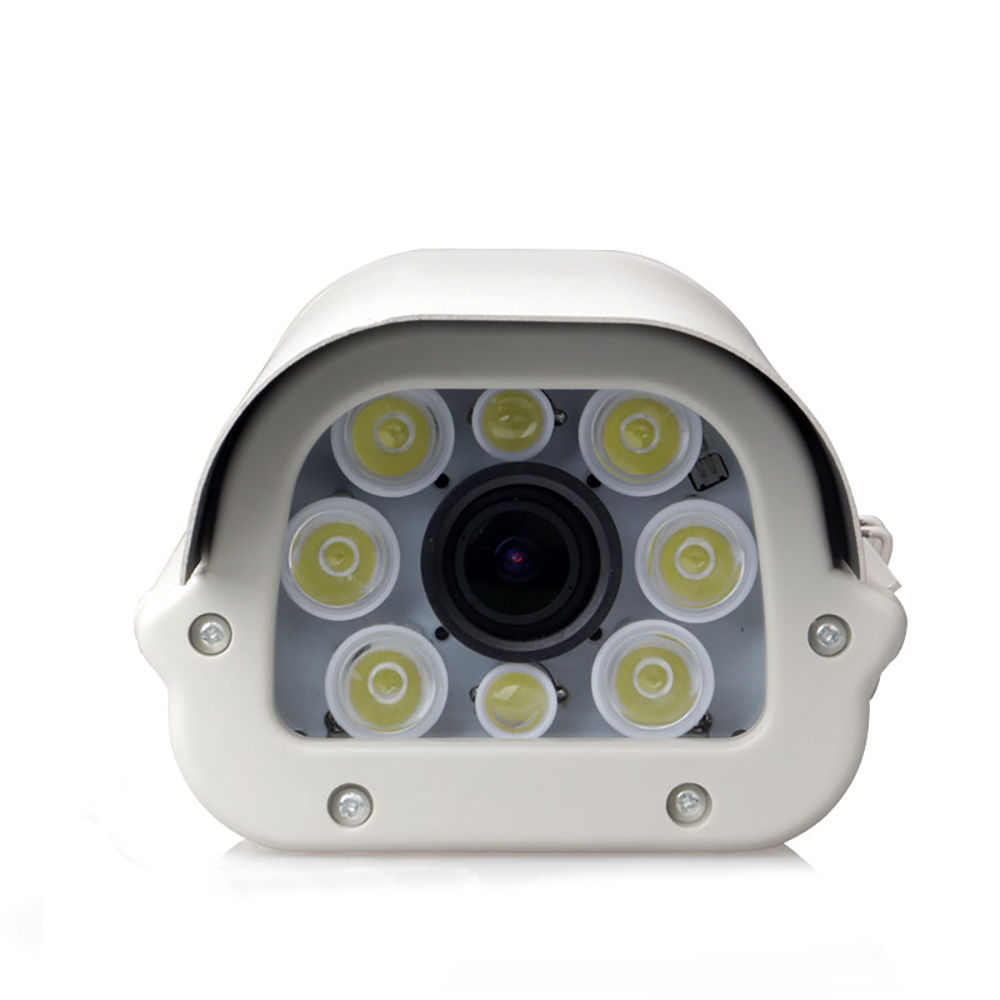

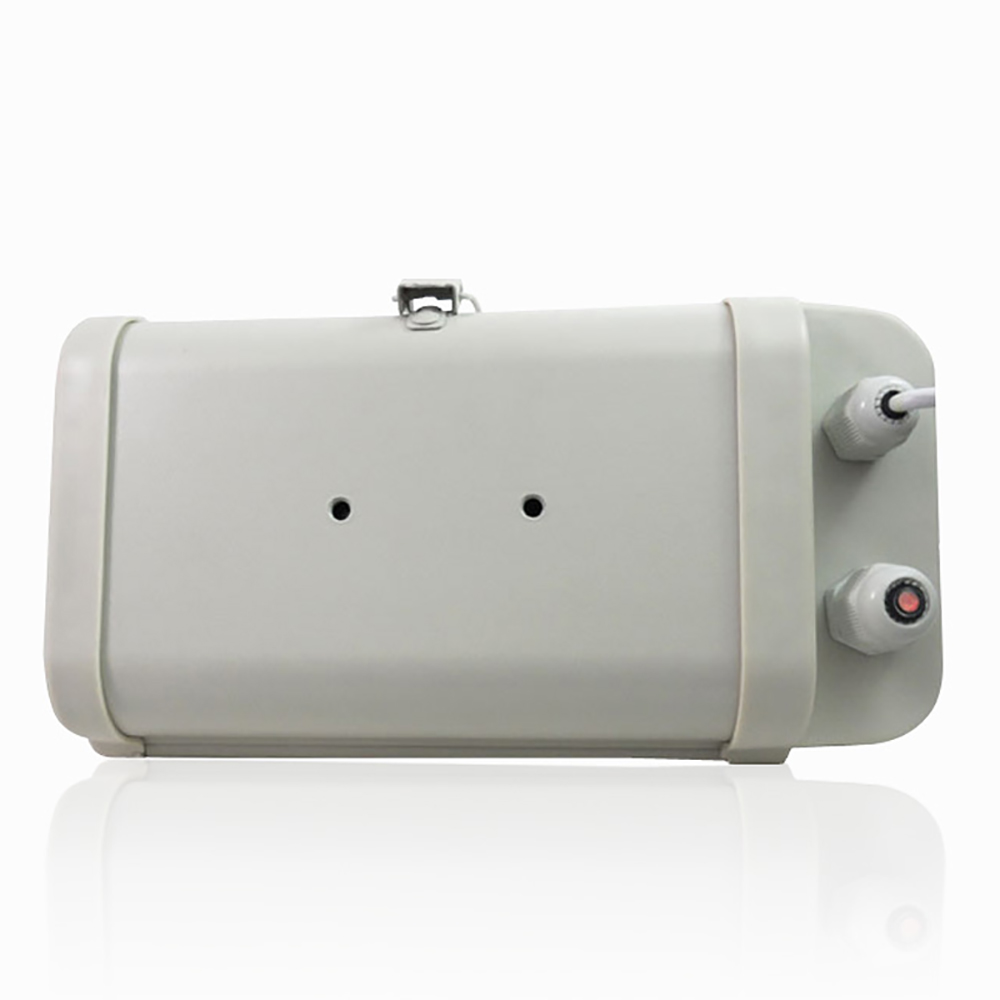

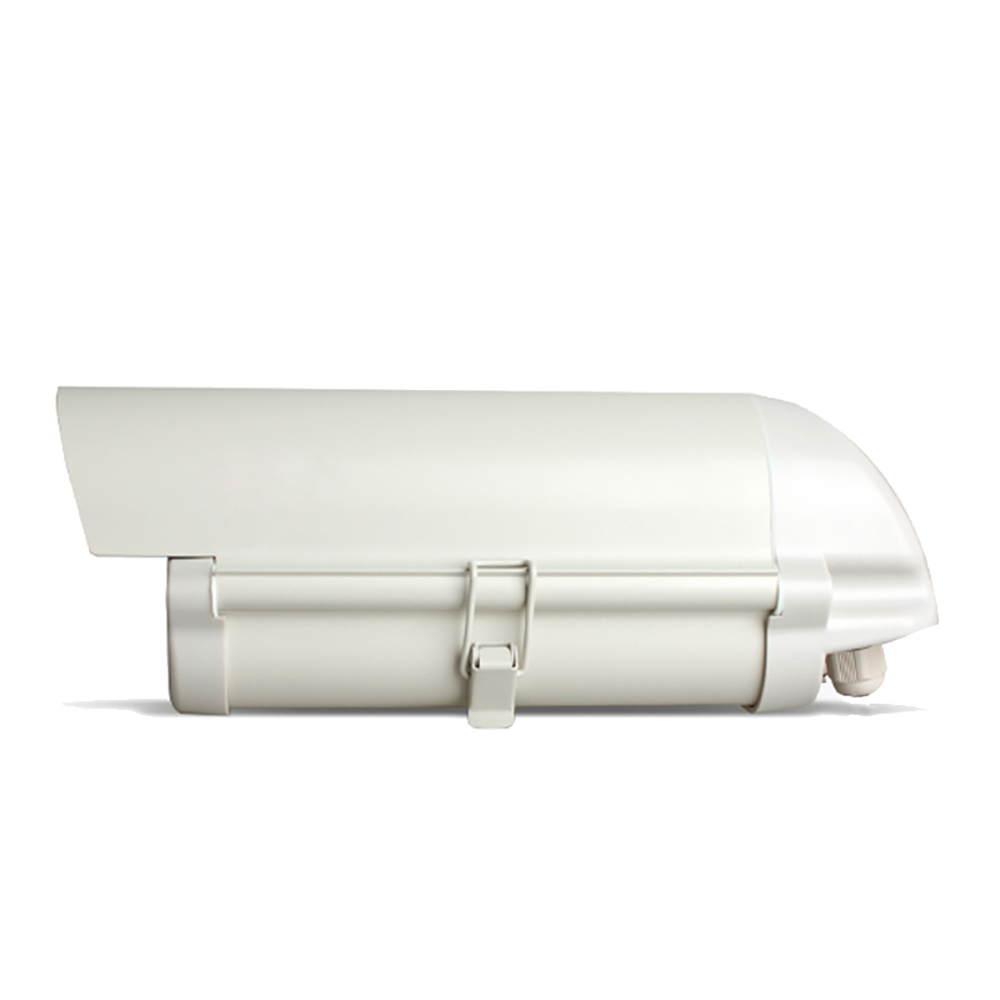

IPC-951 Car Licence Camera
Description：
- * 2.0MP H.265.
- * 6pcs White Light.
- * Motorized 6-22mm.
- * Motorized 2.8-12mm Lens Optional.
- * Car Plate Number Camera.
- * Max Speed 180KM/H;
- * Free 32CH IPClient and 64CH CMS Software;
- * Protocols:RTSP/RTMP/ONVIF(Dahua,HK);
- * TF Card Slot 8-128G.
- * LCD Menu Optional.
- * APP:Camhi,CMS:HiP2P.
- * IP66 Weatherproof Standard.
- * #110 Size Metal Housing.
Product Description:
Adopt Ambarella S2L Image Processor,SONY Exmor 1 / 2.8 Built-in Ai vehicle detection Algorithm: Automatically turn on the strong light suppression when the vehicle comes in,and turn off the strong light suppression automatically when the vehicle leaves;Ordinary starlight machine;support for ground pressure coil capture,virtual coil capture;TF card local storage, P2P remote preview, storage, download video;high speed CMOS sensor,support up to 1920 x 1080p 30fps Real-time image with excellent glare suppression,super wide dynamic,automatic gain value,3D noise reduction effect;Can monitor three lanes at the same time,Speed up to 180KM / h; ONVIF / GB28181 protocol, compatible with mainstream market NVR; SDK provided Development kit for secondary development.
Feature:
1. Using Ambarella high-performance image processor;
2. SONY Exmor / 2.8 "low-noise CMOS sensor with minimum color illumination of 0.1Lux / black and white 0.01Lux;H.265+ advanced profile (HighProfile) compression algorithm to realize high-definition image transmission at low bit rate;With three streams, up to 1920 x 1080p 30fps real-time encoding;
3. P2P remote preview, storage, download video;
4. Built-in Ai model detection algorithm: Automatically turn on the strong light suppression when the vehicle arrives, turn off the strong light suppression automatically when the vehicle leaves,
5. Ordinary starlight machines without vehicles passing by; see license plates, look at the environment;
6. Can monitor 3 Lanes at the same time,the maximum speed is 180KM / h.
7. With a speed of 30KM / h (30 yards), 60KM / h (60 yards), 90KM / h (90 yards), 120KM / h (120 yards),150KM / h (150 yards), 180KM / h (180 yards) adjustable;Ground coil capture, virtual coil capture, license plate recognition (cooperate with our company license plate recognition software);
8. With local TF card storage function, the machine has a built-in TF card slot (can store video and capture pictures, the largest Support 128G TF card);
9. FTP upload function, the captured pictures are automatically uploaded to the FTP server;

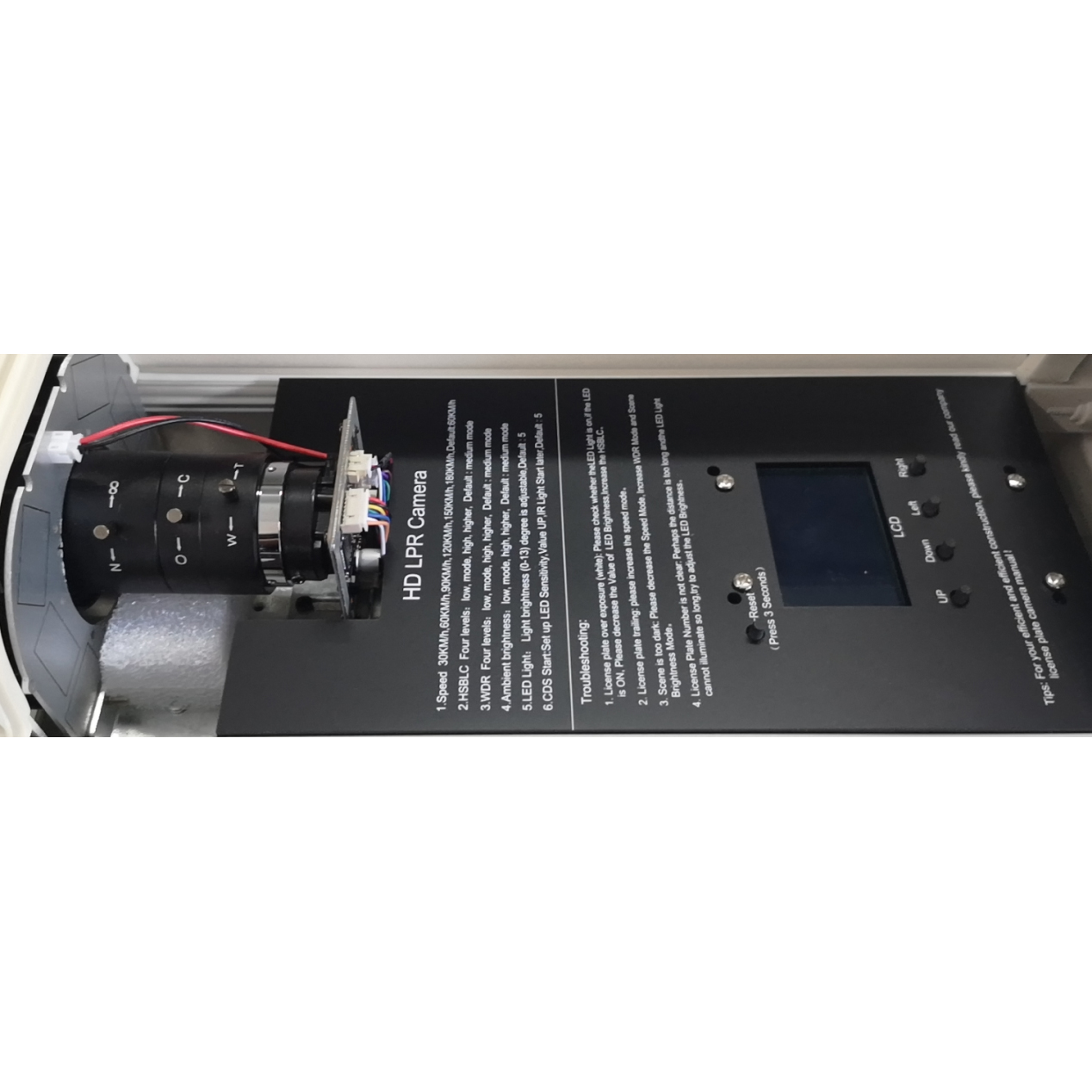

10. LCD display function: vehicle speed display, strong light suppression level, wide dynamic level display, etc., all according to the license plate
11. The parameter value can be displayed through the built-in LCD screen of the machine;The brightness of the fill light is adjustable in 13 levels, and the adjustment parameters are automatically saved in the MCU of the control board.
12. The morning and evening value of the fill light is 13 levels adjustable. The adjustment parameters are automatically saved in the control board MCU, and the power is turned off memory;
13. Unlimited by ambient light and special angles, adapt to any environment, fast installation, no need for professional debugging,All parameter settings can be completed on the camera control board, and the NVR can be connected to achieve clear video recording.Capture license plates;
14. Built-in rich network protocol: HTTP, HTTPS, RTSP, RTSP OVER HTTP, TCP / IP, UDP, DDNS, DNS, DHCP, PPPOE, etc .;
15. Provide SDK development interface, support Windows / Linux platform;
16. ONVIF and GB28181 protocols, compatible with mainstream NVRs such as Haikang, Dahua, Jufeng, Yushi, and Zhongwei.
|
Model NO. |
IPC-THS-951 |
|
DSP |
Ambarella S2L |
|
Sensor |
1/2.8 inch SONY Starlight ExmorIMX307 |
|
Resolution |
1920*1080P |
|
Frame |
Real-time 30FPS |
|
Illumination |
Color 0.0001Lux@F1.2,Black/White 0.0001Lux@F1.2 |
|
Video compression |
H.265AI/H.265+ (Compatible with H.265/H.264),support dual stream,AVI;0.1M~8Mpbs variable;1~30f/s variable |
|
WDR |
off,Low,Medium,Higher,High mode adjustable |
|
Eclipse |
off,Low,Medium,Higher,High mode adjustable |
|
Brightness |
Auto,Low,Medium,Higher,High mode adjustable |
|
Distance |
3MP 2.8-12mm Varifocal Lens 30 Meters |
|
Audio Input |
Support |
|
White Light LED |
6 pieces of 3W high power,13 levels of brightness adjustable, digital dimming by button |
|
Net interface |
1*RJ45 10/100M adaptive Ethernet port; |
|
Protocol |
HTTP, HTTPS, RTSP, RTSP OVER HTTP, TCP / IP, UDP, DDNS, DNS, DHCP, PPPOE, etc |
|
ONVIF |
ONVIF 2.6 and GB28181 protocols |
|
TF Card |
Max 128G |
|
POE |
POE Optional |
|
Reliability |
Comprehensive lightning protection, 7 * 24 hours -20℃～65℃high temperature stable and reliable testing |
|
Optional |
Intelligent temperature control, fan automatically turns on at 20 ℃ |
|
APP |
Camhi |
|
CMS |
HiP2P |
|
Power Input |
DC12V/POE 48V |
|
Application |
Outdoor(Weatherproof IP66 Standard) |
|
Consumption |
≤20W |
|
Working Temp. |
-20--65 ℃ |
|
Humidity |
10--85% |
|
Size |
12" Housing |
